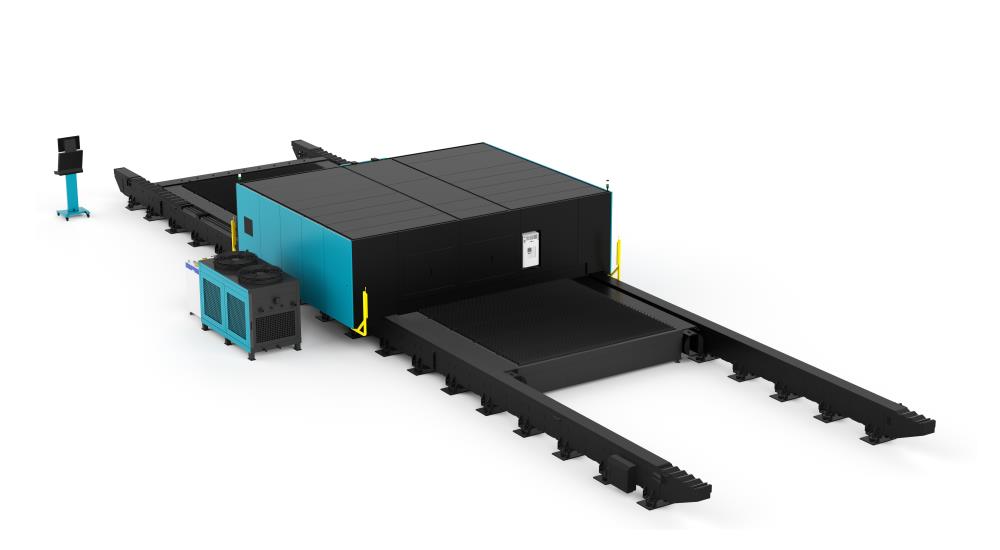

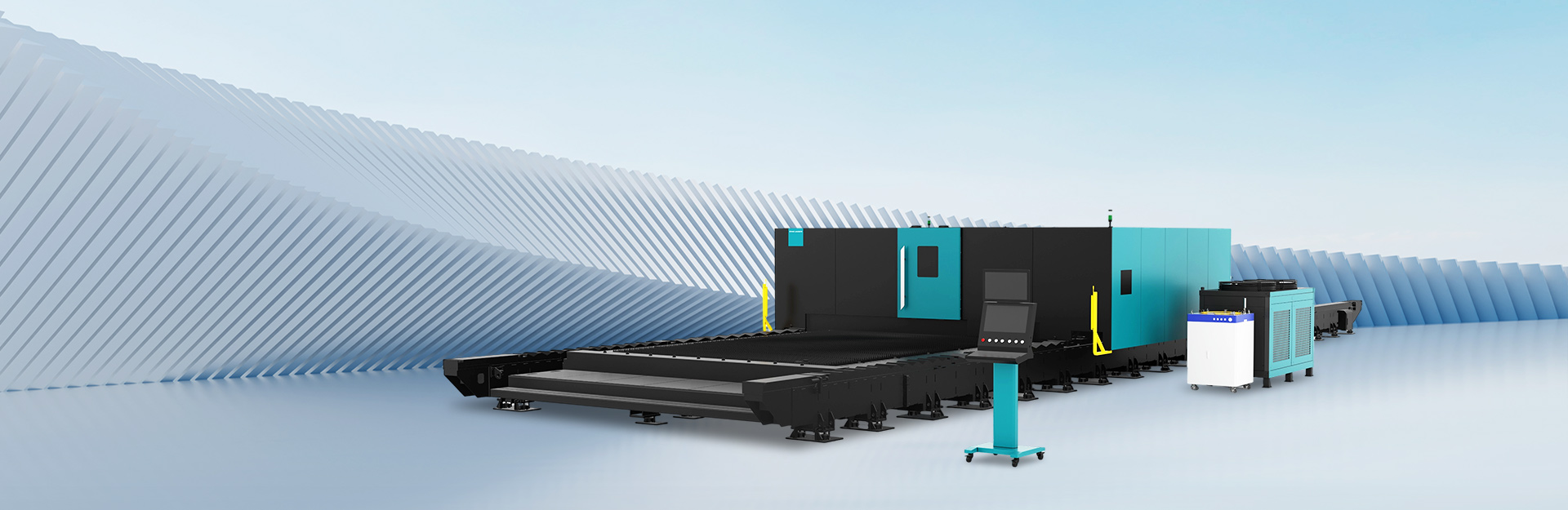

Big Size Ground-Rail Fiber Laser Cutting Machine

Add to List

Product Comparison

Home·Products·D-Giant

Product Description Product Features Technical Parameter Service Support Related Products

Add to List

Product Comparison

Get a Quote

Product Description

The D-Giant big size ground-rail fiber laser cutting machine is specifically configured for high-end customers who are seeking the utmost quality. Its key components are sourced from reputable suppliers, ensuring superior cutting accuracy, enhanced speed, user-friendly operation, cost-effectiveness, and a broader range of compatible materials.

Product Features

Adopting ground-rail high-precision machine tool.

Ensuring cutting precision by using separate handling and loading.

Customized process size with different lengths per requirement.

Applicable in cutting extra long and big sheet metal.

Good air exhaust effect by segmented exhaust.

Can upgrade to match mechanical arm, bending and welding equipment, etc.

Technical Parameter

Laser Source	Fiber Laser Source(optional)
Format(Customizable)	Width:3m /3.5m/ 4m /4.5m /5m; Length:12-40m
Laser Power	12000W 20000W 30000W 40000W 60000W 80000W
X/Y-axis linkage maximum acceleration	1.4G/1.4G/1.2G/1G/1G
X/Y-axis linkage maximum positioning speed	120/120/100/80/80 m/min
Maximum linkage positioning speed (Follow-up enclosure)	50m/min
Maximum linkage acceleration(Follow-up enclosure)	0.5G
X/Y-axis positioning accuracy	±0.15mm/10m
X/Y-axis repeated positioning accuracy	±0.10mm/10m
Power consumption of complete machine	≤70kW ≤110kW ≤140kW ≤170kW ≤250kW ≤320kW
Bevel cutting function	Optional
