Product Description

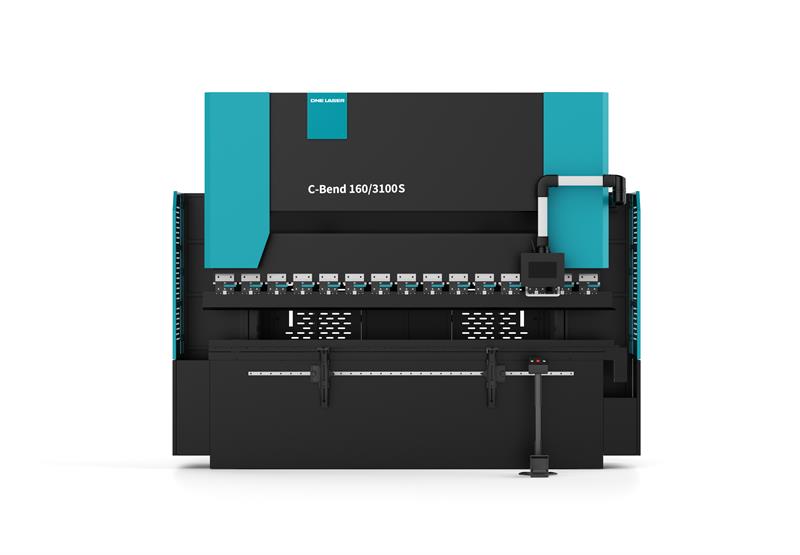

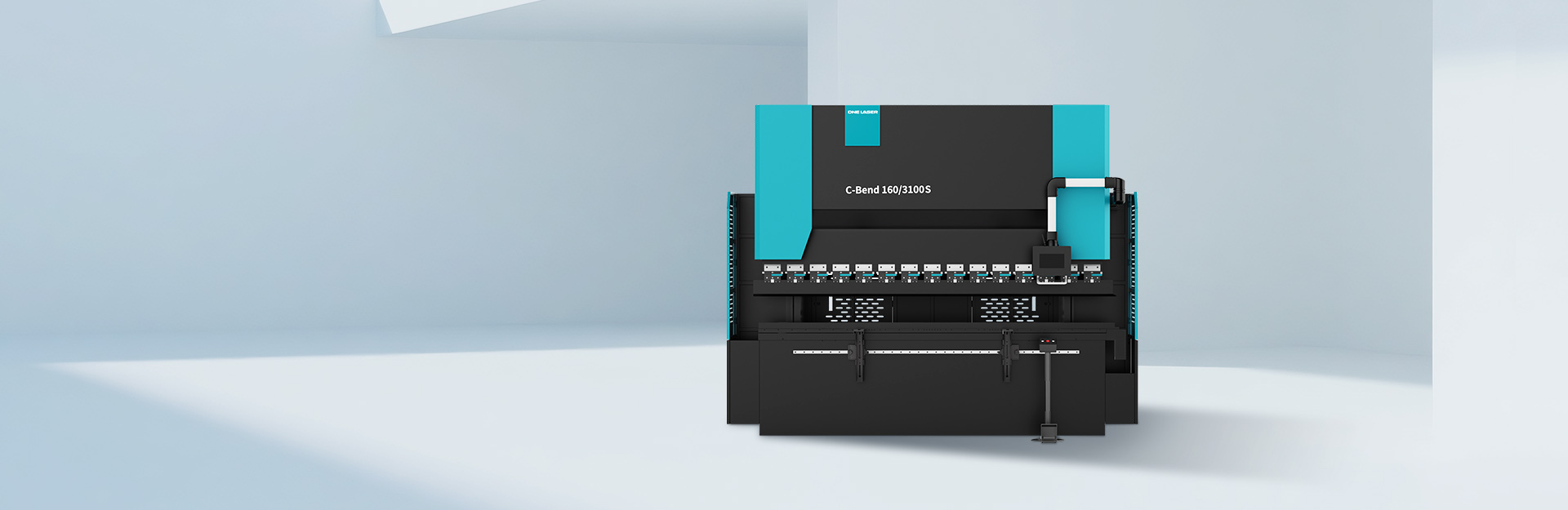

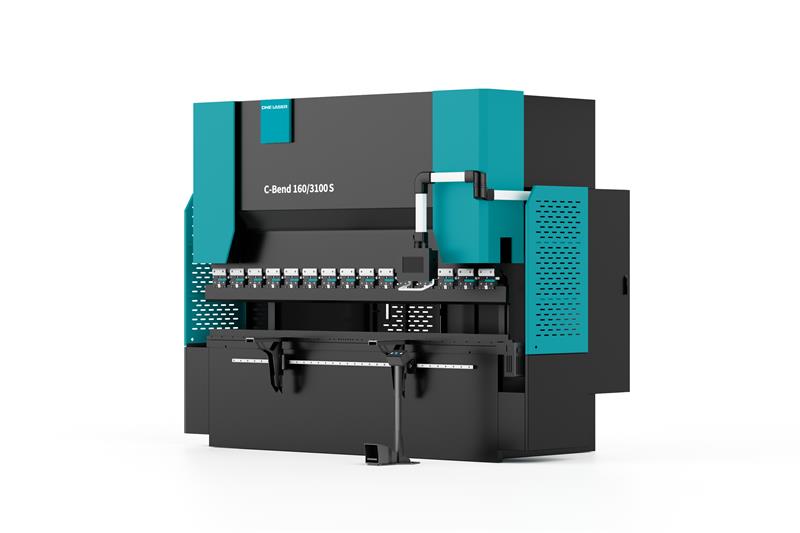

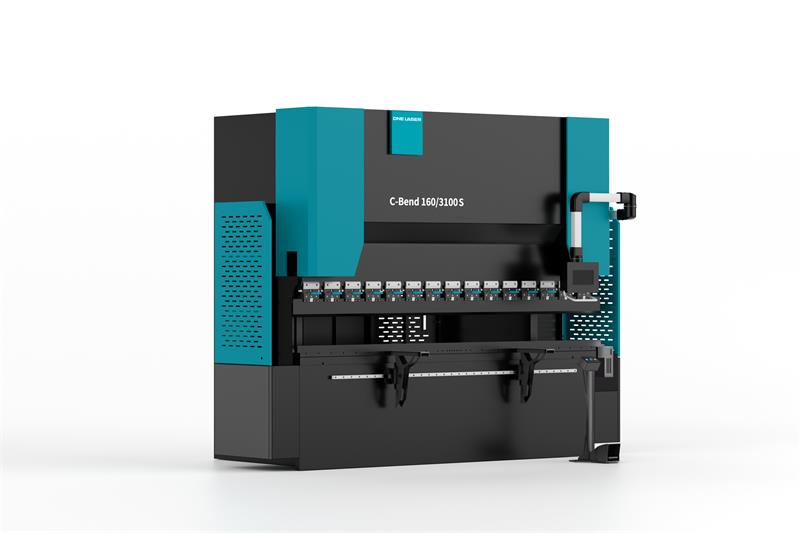

DNE LASER C-Bend S electro-hydraulic servo press brake is a powerful tool for sheet metal processing. It features advanced electro-hydraulic servo technology for stable operation and high precision. With a robust 160T force and a 3100 mm working length, it can handle a wide range of sheet metal bending tasks. The intelligent control system is user-friendly and allows for quick parameter settings. The machine's sturdy structure ensures high reliability, enhancing bending efficiency and maintaining processing quality, offering a new level of efficiency and precision in sheet metal processing.

Product Features

CNC-controlled mechanical deflection compensation technology ensures consistent bending quality.

The high-frequency response closed-loop hydraulic control technology offers outstanding speed, efficiency, and precision.

The frame is integrally welded and undergoes CNC annealing to eliminate stress, ensuring precision and no deformation after processing.

The "C" frame design provides a broader processing range and higher flexibility, accommodating complex shapes and sizes of workpieces.

The enhanced hydraulic pump and main servo motor deliver superior power, resulting in faster bending speeds and significantly improved production efficiency.

Technical Parameter

Technical indicators	Unit	C-Bend-S 100/3100	C-Bend-S 160/3100
Bending force	kN	1000	1600
Bending length	mm	3100	3100
Opening height	mm	500	600
Side plate spacing	mm	2500	2500
Throat depth	mm	410	410
Y-axis (oil cylinder) travel	mm	200	300
X-axis travel	mm	500	500
X-axis maximum positioning length	mm	800	800
R-axis travel	mm/s	100	200
Z-axis travel (for 6-axis backgauge, optional)	mm	2300	2300
Y-axis precision	mm	0.01	0.01
X-axis precision	mm	0.05	0.05
R-axis precision	mm	0.05	0.05
Y-axis rapid traverse speed	mm	150	15
Y-axis working feed speed	mm/s	10	10
Y-axis return speed	mm/s	140	140
X-axis positioning speed	mm/s	400	400
R-axis positioning speed	mm/s	100	100
Z-axis positioning speed (for 6-axis backgauge, optional)	mm/s	600	600
Hydraulic oil volume	L	250	250
