D-Energy F

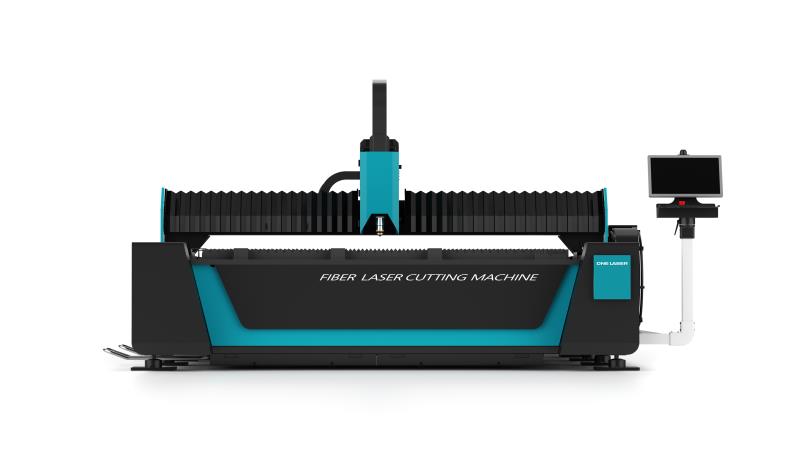

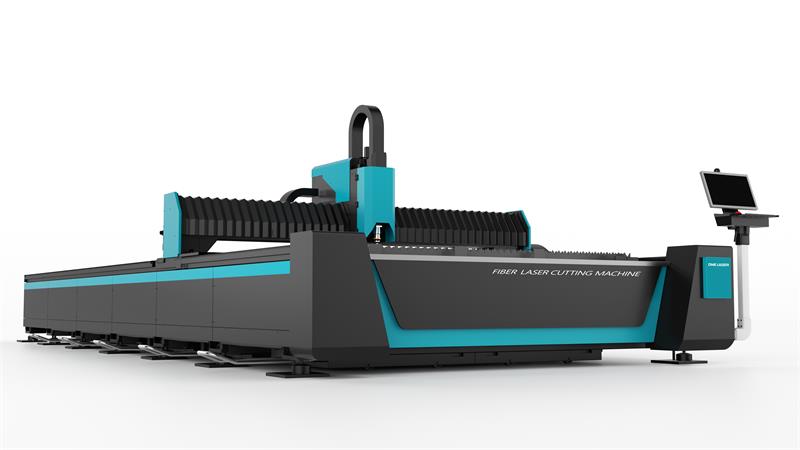

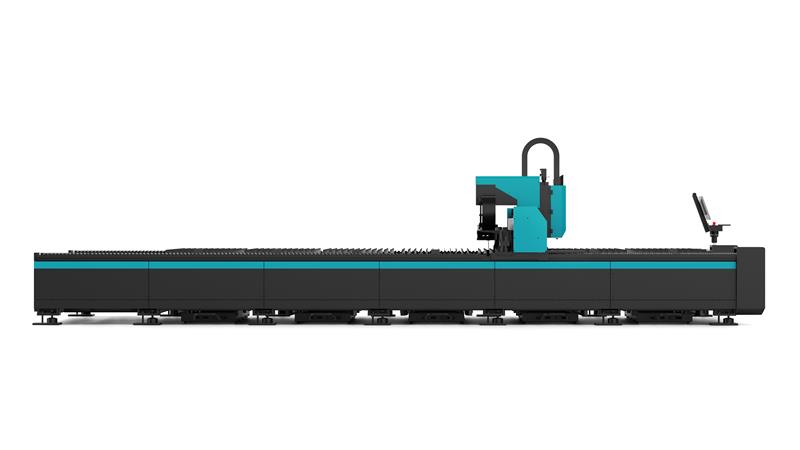

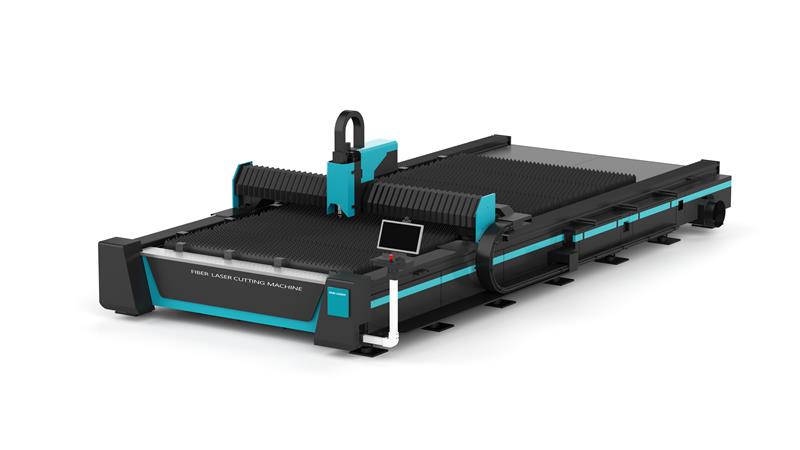

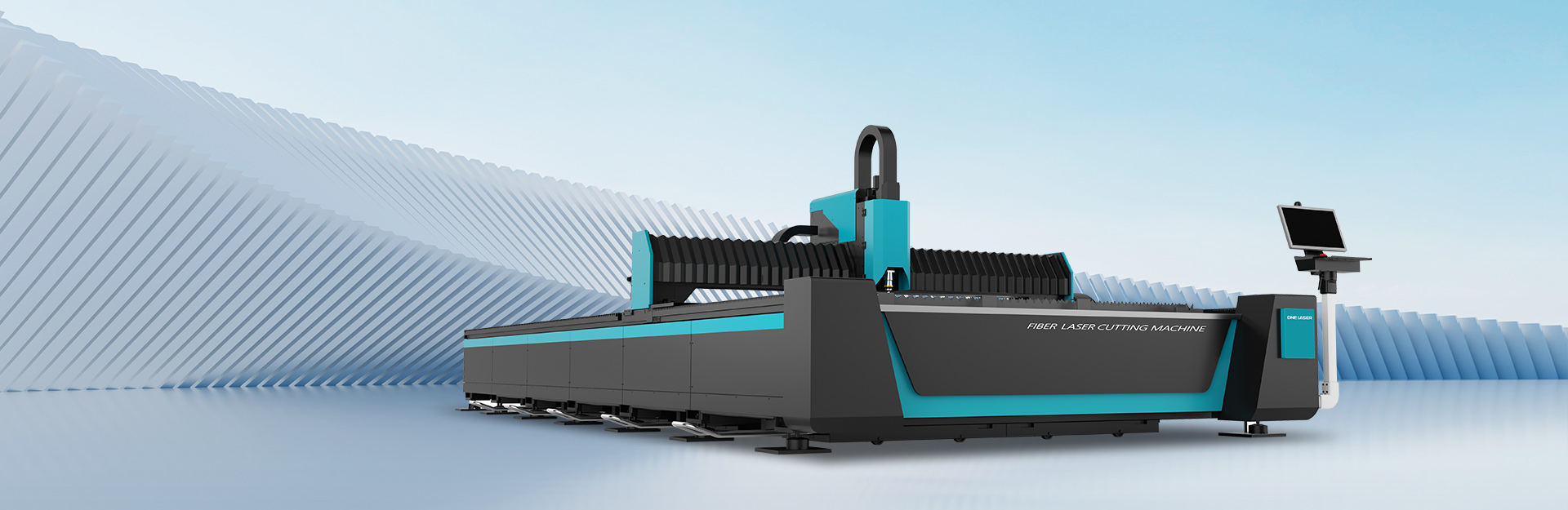

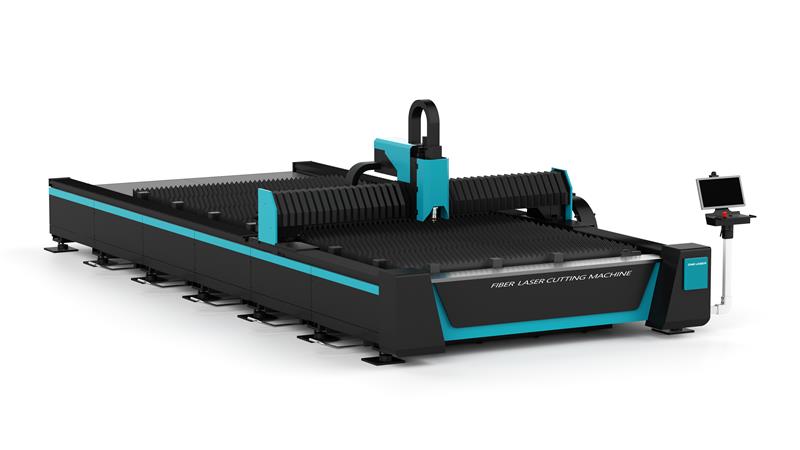

Fiber Laser Cutting Machine

Add to List

Product Comparison

Home·Products·D-Energy F

Product Description Product Features Technical Parameter Solution Related Products

Add to List

Product Comparison

Get a Quote

Product Description

This machine is equipped with an ultra-high laser power of up to 30,000W, which can provide users with a diverse selection of processing widths, fully meeting different processing needs. The 1530(3-6KW) model has a unique advantage by allowing three units into a 40HQ ordinary container at one time, demonstrating outstanding convenience in transportation and installation. It offers excellent cost performance and is a high-quality choice with strong competitiveness in the industry.

Product Features

Up to 30,000 W laser power.

3—13 m multiple processing areas.

1.5 G maximum linkage acceleration.

Low power laser cutting machine without disassembly.

150 m/min maximum linkage positioning speed.

Equipped with the self-developed cutting head, it is more reliable.

Capable of meeting the requirements for cutting British standard plates.

Three model 1530 machines fit in a 40HQ container.

Control System：DCS100 (3 - 6KW); DCS100 (= 12KW with the function of cutting thick plates); DCS300 (> 12KW).

Technical Parameter

Laser Source	Fiber Laser Source(optional)
Format(Customizable)	1530 2040 2560 2580 32130
Laser Power	3000W 6000W 12000W 20000W 30000W
X/Y axis linkage maximum acceleration	1.5G
X/Y axis linkage maximum positioning speed	150 m/min
X/Y-axis positioning accuracy	±0.05mm
X/Y-axis repeated positioning accuracy	±0.03mm
Power Consumption of complete Machine	≤30kW ≤40kW ≤65kW ≤95kW ≤135kW
