Product Description

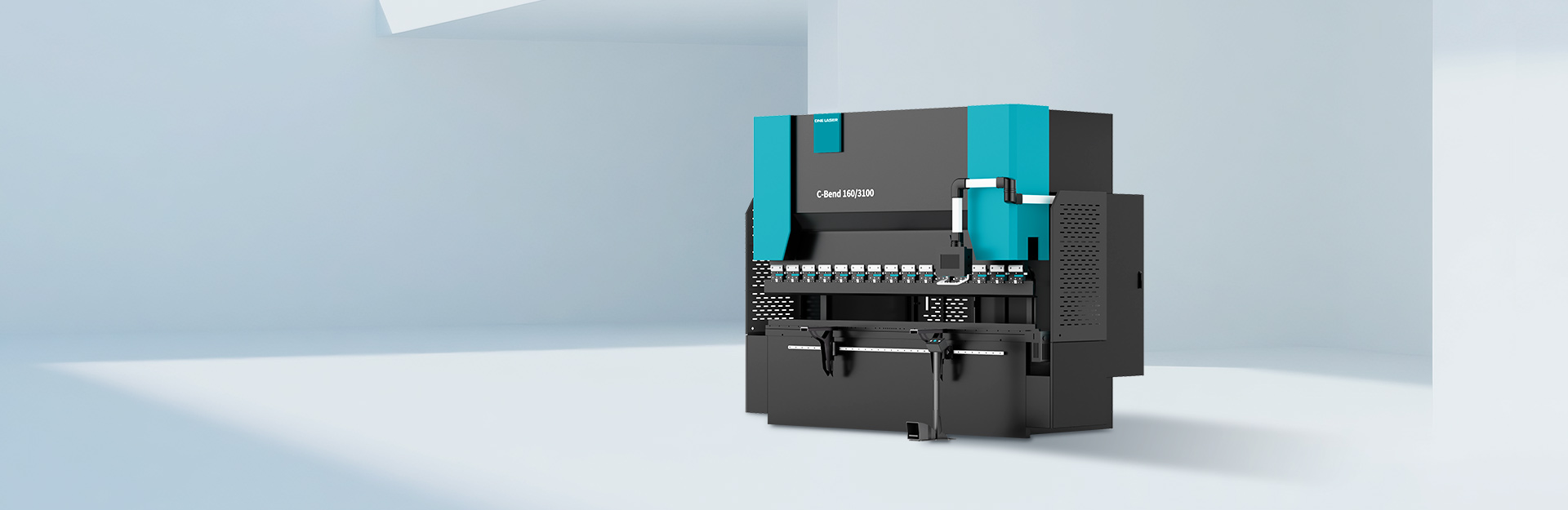

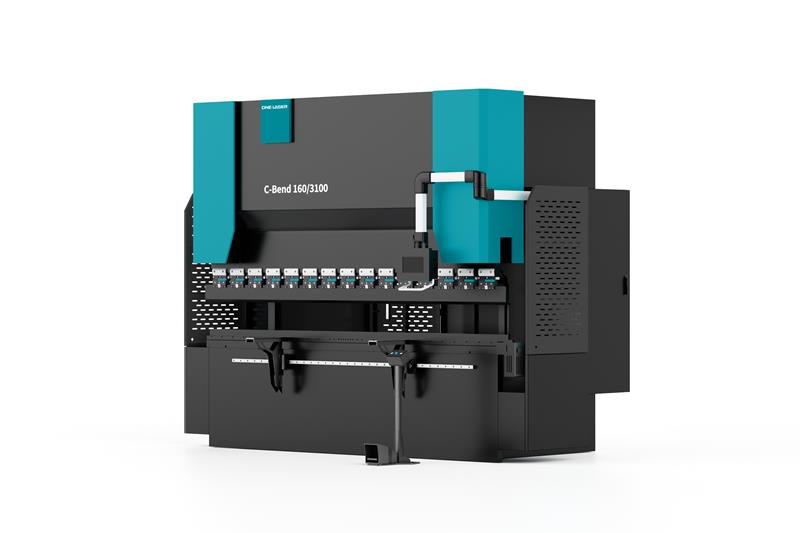

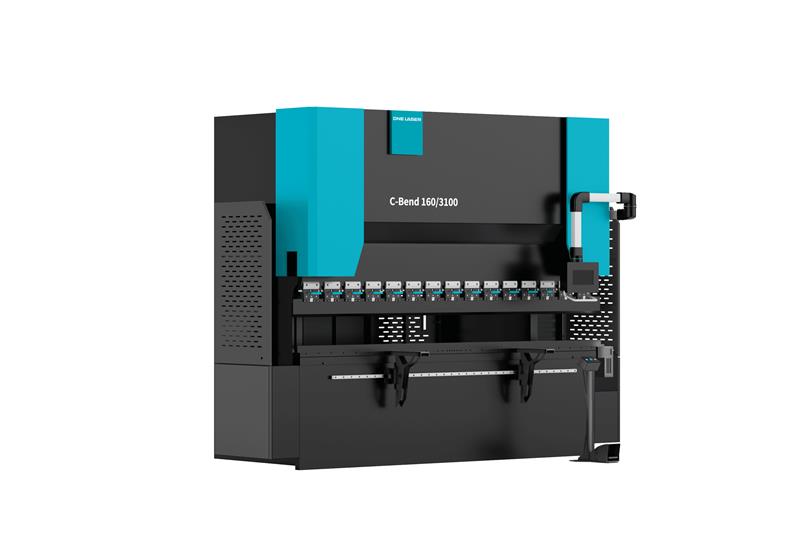

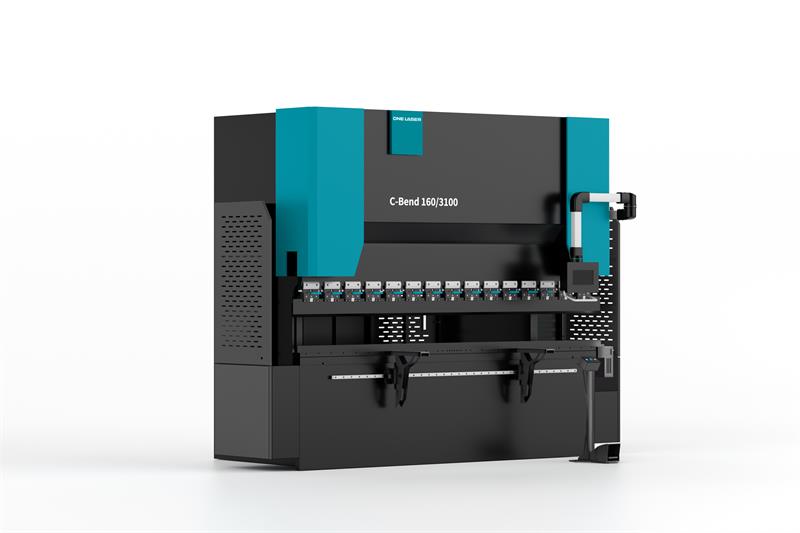

C-Bend series CNC bending machine is a product developed by DNE LASER which focuses on high precision sheet metal bending. The machine tool design seamlessly integrates cutting-edge bending technology, aiming to enhance processing efficiency, precision, and waste reduction. It offers exceptional cost performance. The Bend series CNC bending machine features a compact and practical C-frame structure. Through meticulous design and rigorous verification of overall machine rigidity, it expands the processing capabilities and ensures long-term stability during operation.

Product Features

Fast, precise, reliable back gauge system.

Favorable price-performance ratio, quick return on investment.

High-speed,high-precision, high-reliability rear positioning system.

CNC controlled mechanical crowning technology guarantee the constantly angle accuracy.

High-frequency closed-loop hydraulic control technology, faster, more efficient, more stable precision.

C-frame. Unique design and whole machine rigidity verification improve the processing range and guarantee the long-term use of high stability.

Technical Parameter

Technical indicators	Unit	C-Bend 100/310	C-Bend 160/3100
Bending force	kN	1000	1600
Bending length	mm	3100	3100
Cylinder stroke	mm	200	300
Opening height	mm	500	600
Throat depth	mm	410	410
Side plate spacing	mm	2500	2500
X-axis travel	mm	500	500
X-axis maximum positioning length	mm	800	800
Y-axis precision	mm	0.01	0.01
X-axis precision	mm	0.05	0.05
X-axis positioning speed	mm/s	400	400
R-axis travel	mm	100	100
R-axis positioning speed	mm/s	100	100
R-axis precision	mm	0.05	0.05
Z-axis travel (for 4-axis rear positioning)	mm	2300	2300
Z-axis maximum speed (for 6-axis backgauge, optional)	mm/s	600	600
Y-axis rapid traverse speed	mm/s	150	150
Y-axis working feed speed	mm/s	10	10
Y-axis return speed	mm/s	140	140
Hydraulic oil volume	L	250	250
